Custom Channel Overview
You need to have a Business Plan or above to connect your Custom Channel to IS-Messenger Please upgrade or subscribe to a Business or Enterprise plan of IS-Messenger to use this feature.
Look at our GitHub project here as an example of a Custom Channel you can try deploying on your server.

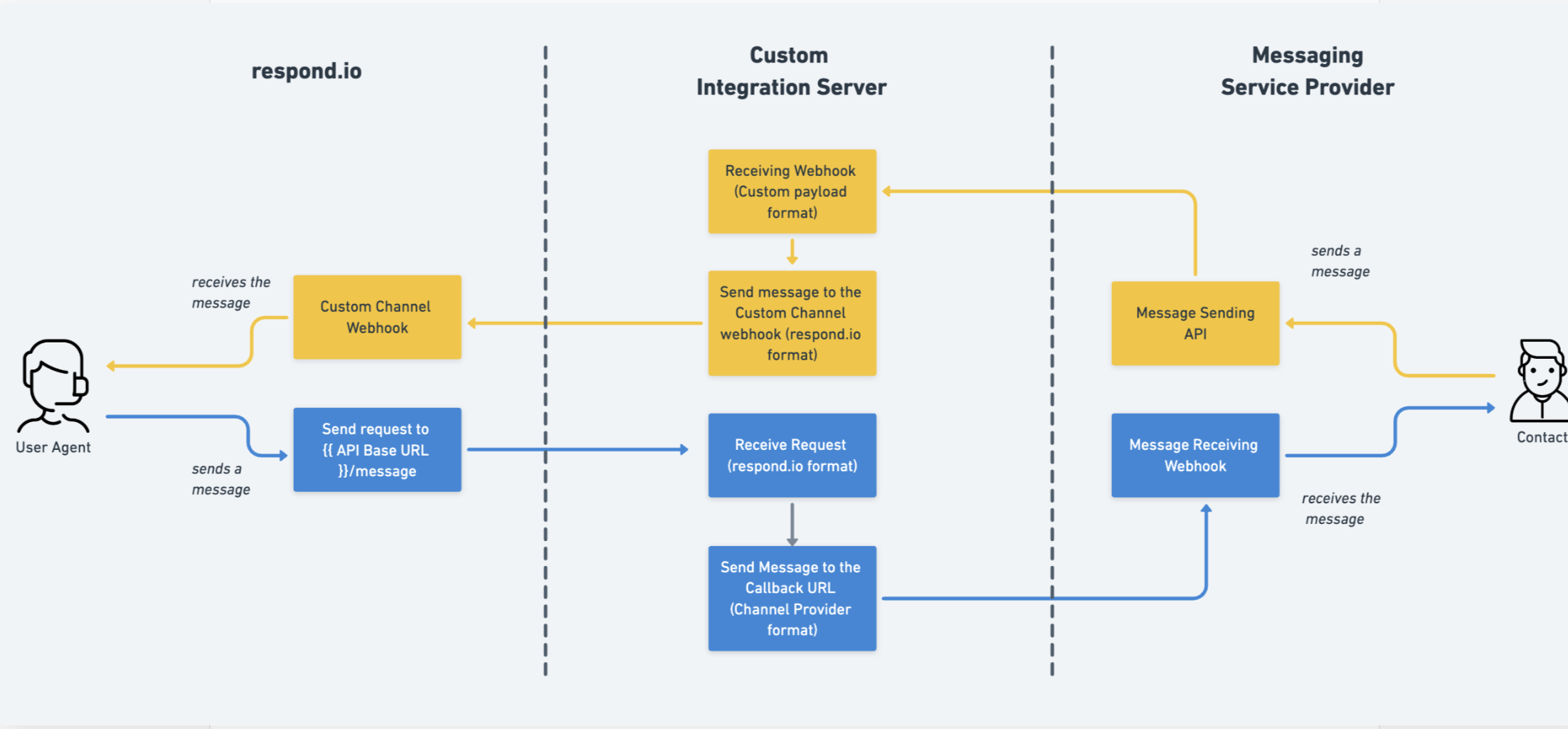

How it works
Receiving a Message
To receive a message via a Custom Channel, the following steps need to be followed:
When Contact attempts to send a message, the messaging service provider will call your custom integration server with the message payload (please review the API documentation of messaging service provider for reference).
Your custom integration server will receive the message and post it to IS-Messenger (in IS-Messenger format).
IS-Messenger will receive the post request, save the message and display it on the Messages module.
Sending a Message
To send a message via a Custom Channel, the following steps need to be followed:
When a User/Workflow/Broadcast attempts to send a message, IS-Messenger will call your custom integration server with the message payload (in IS-Messenger format).
Your custom integration server will receive the message and will post it to the messaging service provider in the format that they require (please review the API documentation of messaging service provider for reference).
The messaging service provider will receive the Webhook and confirm if the message has been delivered successfully.
If the message is not delivered successfully, you can try adding a retry mechanism in your custom integration server.
Channel Capabilities
The Custom Channel capabilities are listed below:
Message Status Availability
For the Custom Channel, the message status availability is shown in the table below:
Message Status | Availability |
Sent | ✅ |
Delivered | ✅ |
Read | ✅ |
Failed | ✅ |
Broadcasts
It is possible to send broadcast messages through a Custom Channel connected to IS-Messenger.
- Learn more about how to send a broadcast here -Learn how to deal with failed broadcast messages here
Rate Limits
A rate limit is the number of API calls an app or user can make within a given time period defined by the channel. The rate limit for a Custom Channel is set at 20 requests per second.
Channel Limitations
With Custom Channels, it is not possible to detect whether a messaging window is open or closed.
It is also not possible to send tagged or template messages.
